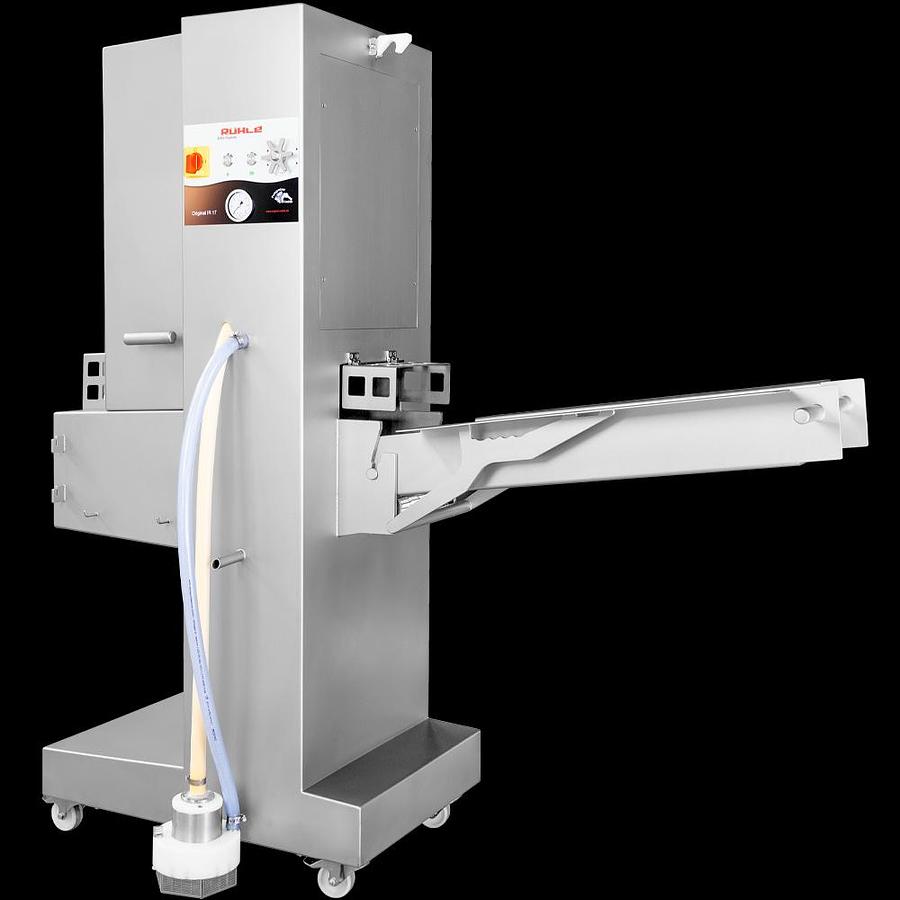

Ruhle IR17 Injector

The Rühle IR17 is a compact, high-precision brine injector for small to medium food processors, ideal for uniform curing and marination of pork, poultry, fish, and whole cuts like suckling pigs or turkeys.

It uses 17 needles in two rows with single-needle control—each needle senses meat surface to open brine flow, closes on bone contact to avoid pooling, and injects evenly until exiting the product underside, achieving 3-60% injection rates at 0.3-4.2 bar via a stainless steel jet pump for perfect brine mixing.

Key specs include a 265mm wide wire-mesh conveyor belt (easy-clean, captures runoff), Touch-PC controls with diagnostics, variable speeds (21/42 strokes/min), 280mm product clearance, 1500 kg/hour throughput, 400V/5.3kW power, and dimensions of 930 x 580 x 1850 mm at 250 kg—all in hygienic stainless steel construction (IP54).
